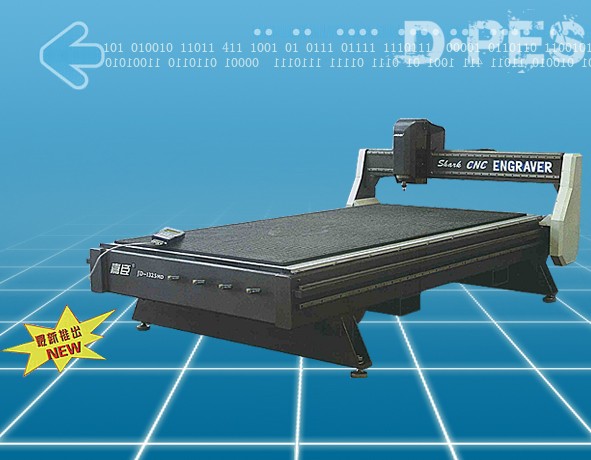

Product Name:JD-1325MD

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets UNIT/UNITS
Place of Origin:
Min. Order:
FOB Price:
USD 1.00-25000.00 /
Shipping Terms:
1
Shippment Port:
Payment Terms:
T/T,Other
Show Buyers your Ability to Supply:
Production Capacity:
0 per 0
Delivery Time:
Packaging:
Plywood case

Detailed Product Description:

Standard Features
·More advanced DSP dig-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler
maintenance and much more human nature on the design of the machine.
·Unique intelligent calculation fully develops the potential of the engine and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 50m/min.
·Unique and dynamic renewal ability of the system enables the customer, according to different processing requirements, to change the
controlling of the system and therefore, effectively improves the processing efficiency( Please start the operation with the instructions of the technical staff from the factory or agent).
·Large internal memory capacity of 32M is able to store more than thirty processing files simultaneously and open and process any of them.
·Connection with the computer via LI58 interface enables data to be transmitted in a second .supports hot plug and play
in the system
(Wlndow98/NT/2000/XP)
·More compatible: It is compatible with such CAD/CAM software like type3/artcam/castmate/proe/UG/Arrcut etc.
·It is able to go on engraving when the electricity is cut or the tool is broken.
·Adopt rack transmission .Y direction two motor driver. Import line guide rail. Force great speed faster.
·The Spindle with high power and frequency conversion enables the machine to cut Plexiglas and veneer sheet of 20-40mm thick in one cut.
·Vacuum Adsorption Platform (option).

Functional Index

Standard Value

Working Area

2900×1320mm

Travel of English

2500×1200×200mm

Maximum Speed

12000mm/min

Engraving Spindle

inverter 2200W

Rotational Speed of Spindle

6000-24000rpm

Manner of Receiving Data

USB interface

Capacity of Memory

32M

Format of Instructions

G codeHPGL

Cutter

Ø3.175 or Ø6.00

Power Supply

AC220/50HZ

Electric Power

3000W

Driving System

Stepper
