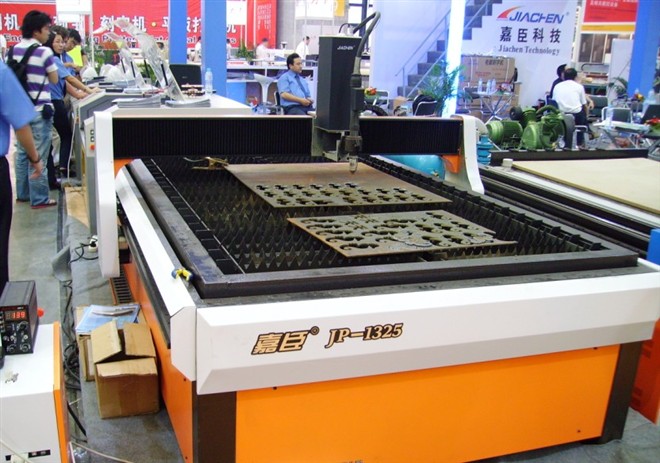

Product Name:JP-1325

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets UNIT/UNITS
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-15000.00 /
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 per 0
Delivery Time:
Packaging:
plywood case

Detailed Product Description:

1. Standard Features:

 1. The unit adopts casting framework, it has good stability when It is working;

2. Y axis adopts gear wheel and rack moving to improve strong strength when it is cutting;

3. X, Z axis adopts precise ball bearing rail moving, import-ed high precision slide ways, thus the working speed and precision is guaranteed well;

 4. Imported America HYPERTHERM power, it is good to cut smoothly stainless steel, low carbon steel;

2. Parameters of Functions:



Number

Parameters of Plasma power

Standard Value

1

Working Area

2900×1320mm

2

Travel of Engraving

2500×1300×90mm

3

Maximum Speed

10000mm/min

4

Manner of Receiving Data

USB  interface

5

Capacity of Memory

128M

6

Format of Instructions

G code, HPGL

7

Power Supply

AC220/50HZ

8

Electric Power

600W

9

Driving System

Stepper


Plasma power:

Model: Powermax 45, ( it is decided by types materials and thickness,)



 1. Adopted HYPERTHERM POWER, imported America,

 2. The max capacity of thickness: 8-10mm

 3. Output current: 20-45A

 4. Input voltage: CSA: 200V-240V, 1-PH, 50/60HZ

                          CE: 230V, 1-PH, 50/60HZ

 5. Recomended gas input flow / pressure: 170 l/ min
