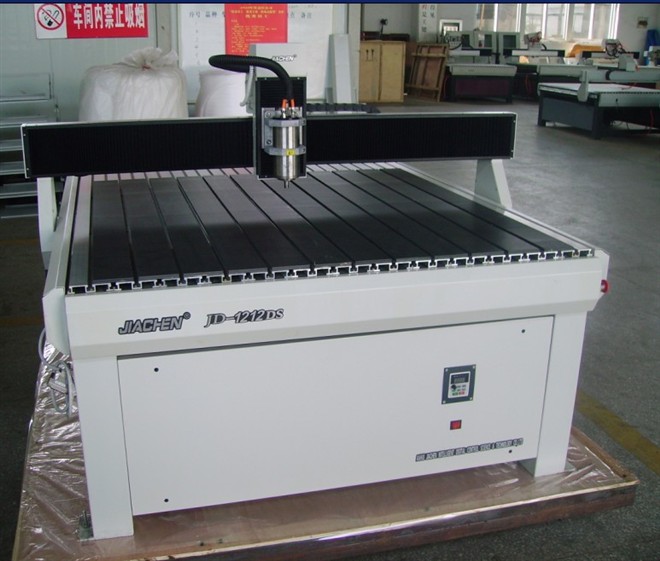

CNC cutting acrylic sheet router: FEATURES:
1.it adopt casting framework to ensure stable,high percision and long life.
2. imported germany ball screw and linear orbit to ensure high accuracy.
3.spindle with water-cooling to processing for long time.
4.it is able to go on engraving when the electricity is cut or the tool is broken.
5.it is compatible with type 3, ucancam, artcam, etc.
Technical Specification:
|
Type:
|
JD-1212DS
|
|
Working Area:
|
1550×1320mm
|
|
Travel of Engraving:
|
1200×1200×100mm
|
|
Maximum Speed:
|
6000mm/min
|
|
Engraving Spindle:
|
Inverter 1500W
|
|
Rotational Speed of Spindle:
|
6000-24000rpm
|
|
Manner of Receiving Data:
|
USB interface
|
|
Capacity of Floppy Disk:
|
NO
|
|
Memory:
|
32M
|
|
Format of Instructions:
|
G code or HPGL
|
|
Cutter:
|
Ø3.175orØ6.00
|
|
Power Supply:
|
AC220/50-60HZ
|
|
Electric Power:
|
600W
|
|
Weight:
|
380Kg
|
|
Type:
|
JD-1212DS
|
|
Working Area:
|
1550×1320mm
|
|
Travel of Engraving:
|
1200×1200×100mm
|
|
Maximum Speed:
|
6000mm/min
|
|
Engraving Spindle:
|
Inverter 1500W
|
|
Rotational Speed of Spindle:
|
6000-24000rpm
|
|
Manner of Receiving Data:
|
USB interface
|
|
Capacity of Floppy Disk:
|
NO
|
|
Memory:
|
32M
|
|
Format of Instructions:
|
G code or HPGL
|
|
Cutter:
|
Ø3.175orØ6.00
|
|
Power Supply:
|
AC220/50-60HZ
|
|
Electric Power:
|
600W
|
|
Weight:
|
380Kg
|
