1. On the use of fixed-gantry structure, matching import dual-Nut Gap Screw Consumers, imports high-precision guide. Dividing head high precision clamping diameter, can adapt to different specifications cylindrical materials;
2. unique intelligent prediction algorithm, and give full play drive motor potential to achieve high-speed processing of song, linear synchronous, more sleek curves;
3. convenient system update capability. The optimal machine performance guarantees;
4. large-capacity storage space, while preserving 30 processing documents, arbitrary reading level processing;
5. use USB interface with the computer communications, instant data transmission, WIN98/NT/2000/XP under the hot-swappable, plug-and-play;
6. compatibility stronger: compatible TYPE3/Artcam/castmate/proe/UG, Wentai, and other CAD / CAM software;

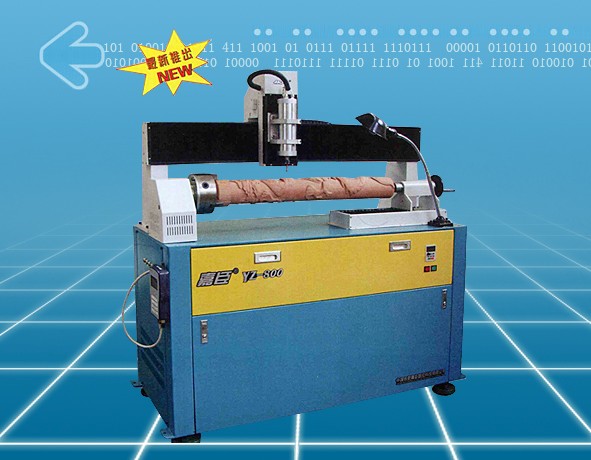

7.On this machine adapted to the main processing cylindrical objects, such as cylinder furniture, handrails and other objects staircase carvings, and so on the surface.
Parameters:
|
Functional Index
|
Standard Value
|
|
Working Area
|
300*1320mm
|
|
Travel of Engraving
|
1200*90mm
|
|
Max Holder Diameter
|
diameter160mm
|
|
Maximum Speed
|
6000mm/min
|
|
Engraving Spindle
|
Inverter 1500w
|
|
Rotational Speed of Spindle
|
6000-24000
|
|
Manner of Receiving Date
|
USB interface
|
|
Capacity of Memory
|
32M
|
|
Format of Instructions
|
G code or HPGL
|
|
Cutter
|
3.175 or 6
|
|
Power Supply
|
AC220V/50HZ
|
|
Electric Power
|
600W
|
|
Driving System
|
stepper
|
|
Weight
|
380kg
|
|
